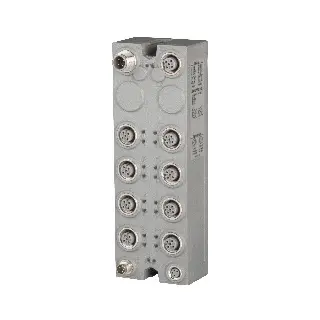

X67DI1371.L12
Informasi Dasar
B&R X67DI1371.L12 adalah modul input digital dengan kepadatan integrasi tinggi, dilengkapi 16 input digital 24 VDC dan konektor M12. Modul ini mendukung semua sensor standar dengan konektor M12, menjadi pengganti langsung untuk distributor pasif, memiliki waktu siklus sangat singkat, serta dilengkapi suplai daya sensor internal dengan proteksi hubung singkat. Dengan perlindungan IP67 dan sertifikasi internasional seperti CE, UKCA, ATEX, UL, KC, modul ini cocok untuk aplikasi industri, termasuk area berbahaya.
Informasi Teknis
Jenis: Modul I/O, 16 digital input 24 VDC
Konektivitas:
X2X Link: M12 B-coded
Input: 8x M12 A-coded
Suplai daya I/O: M8 4-pin
Daya:
Konsumsi internal I/O: 0,5 W
Konsumsi X2X Link: 0,75 W
Suplai sensor: max. 12 W, arus total 0,5 A, proteksi hubung singkat
Tegangan nominal: 24 VDC (18–30 VDC), proteksi polaritas terbalik
Spesifikasi input:
Karakteristik: EN 61131-2 Type 1
Tegangan input: 18–30 VDC, arus tipikal 7 mA @ 24 VDC
Filter: Hardware ≤100 µs, software 1 ms
Resistansi input: ±3 kΩ
Threshold: Low <5 VDC, High >15 VDC
Isolasi channel–bus: 500 Veff
Kondisi operasi:
Suhu operasi: -25 hingga 60°C
Elevasi hingga 2000 m tanpa pembatasan, di atasnya derating 0,5°C/100 m
IP67, orientasi bebas
Dimensi & berat:
53 × 155 × 42 mm, 320 g
Torsi koneksi: M8 max. 0,4 Nm, M12 max. 0,6 Nm
Sertifikasi: CE, UKCA, ATEX Zone 2, UL/cULus, HazLoc, KC
