8BVI0110HCS0.000-1
Informasi Dasar

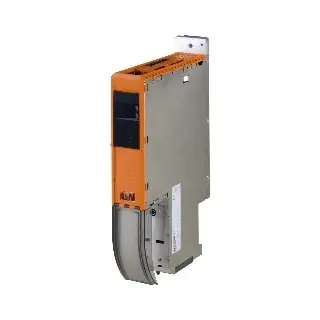

Nama Produk: ACOPOSmulti Inverter Module
Nomor Material: 8BVI0110HCS0.000-1
Deskripsi:
Modul inverter ACOPOSmulti dengan arus kontinu 15.1 A
Mendukung mounting dengan cold plate atau pass-through
Terintegrasi fungsi safe stop dan uncontrolled standstill
Tersedia koneksi untuk motor holding brake dan sensor suhu
Menyediakan 2 slot untuk modul plug-in ACOPOSmulti
Informasi Teknis
Tegangan Bus DC: 750 VDC (nominal), kapasitansi 330 µF
Daya konsumsi kontinu: 11.2 kW
Frekuensi switching: 5 / 10 / 20 kHz
Daya output motor: 11 kW | Arus kontinu: 15.1 Aeff | Arus puncak: 37.7 Aeff
Efisiensi daya (IE2): hingga 2.2% (sesuai kondisi)
Koneksi motor: 1 buah, dengan konektor U, V, W, PE dan proteksi hubung singkat & overcurrent
Koneksi holding brake: Tegangan output 24 VDC (+5.8%), arus kontinu 2.1 A
Koneksi 24VDC Input: 25 VDC ±1.6%, konsumsi max 12W + beban slot
Output 24VDC: 2 buah, tegangan 24 VDC ±6% (tergantung tegangan bus DC)
Input Enable & Trigger: 2 channel, 24 VDC sink type, terisolasi secara elektrik
Sensor suhu: 1 koneksi, rentang resistansi 500 Ω – 5 kΩ
Proteksi: Overload, hubung singkat, ground fault, overvoltage category III
Orientasi pemasangan: vertikal menggantung dan horizontal (menghadap atas)
Suhu operasi: 5 – 40°C nominal, hingga 55°C max
Dimensi (WxHxD): 53 x 317 x 212 mm (cold plate)
Berat: ±2.4 kg
Perlindungan IP: IP20
Sertifikasi: CE, UKCA, UL (cULus E225616), KC, Functional Safety
Download
Automation Studio HW Upgrade
Upgrade file untuk kompatibilitas hardware Automation Studio.
Certificates
Dokumen sertifikasi ACOPOSmulti.
