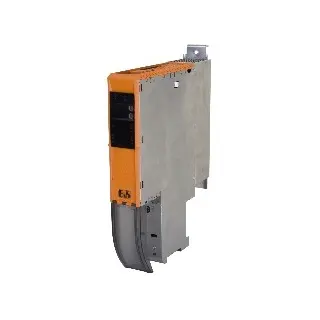

8BVI0028HWD0.000-1

8BVI0028HWD0.000-1

https://odoo.dwiparaya.com/web/image/product.template/1162/image_1920?unique=480d8a9

Informasi Dasar

Material Number: 8BVI0028HWD0.000-1

Deskripsi:

Modul inverter ACOPOSmulti, 3.8 A, AS, wall mounting, 2-axis, dilengkapi fitur berikut:

  • Safe stop dan standstill terintegrasi

  • Koneksi holding brake motor dan sensor suhu

  • Tersedia 2 slot untuk plug-in module ACOPOSmulti

  • Dua inverter daya independen dalam satu modul inverter (2-axis)

Informasi Teknis

General Information:

  • B&R ID Code: 0x26E1

  • DNA (Dynamic Node Allocation): Yes

  • Cooling & Mounting: Wall mounting

  • Plug-in Module Slots: 2

  • Sertifikasi: CE, UKCA, UL (cULus E225616), KC, Functional Safety

DC Bus Connection:

  • Nominal Voltage: 750 VDC

  • Continuous Power Consumption: 5.73 kW

  • Power Dissipation (5/10/20 kHz): Rumus tersedia

  • Capacitance: 165 µF

  • Variant: ACOPOSmulti backplane

24 VDC Power Supply:

  • Input Voltage: 25 VDC ±1.6%

  • Input Capacitance: 23.5 µF

  • Max Power: 16 W + total konsumsi modul & brake

  • Variant: ACOPOSmulti backplane

24 VDC Output:

  • Jumlah: 2

  • Output Voltage:

    • 260–315 VDC: 25 VDC * (UDC/315)

    • 315–800 VDC: 24 VDC ±6%

  • Fuse: 250 mA (slow-blow, reset otomatis)

Motor Connection:

  • Jumlah: 2

  • Power per Connection: 2.8 kW

  • Current per Connection: 3.8 Aeff, Peak: 9.5 Aeff

  • Switching Frequency: 5/10/20 kHz

  • Max Output Frequency: 598 Hz

  • Proteksi: Overload, short-circuit, ground fault

  • Terminal: U, V, W, PE connector

  • Shield: Yes

  • Max Cable Length (5/10/20 kHz): 25 m / 25 m / 10 m

Motor Holding Brake:

  • Jumlah: 2

  • Output: 24 VDC +5.8% / -0%

  • Current: 1.1 A

  • Resistansi Internal: Maks 0.5 Ω

  • Switching Freq: 0.5 Hz

  • Proteksi: Overload, short-circuit, open-circuit, undervoltage

Enable Inputs:

  • Jumlah: 4 (2 per axis)

  • Voltage: Nominal 24 VDC, Max 30 VDC

  • Switching Delay: Max 20.5 ms (off), Max 100 µs (on)

  • OSSD: Max pulse 500 µs

Trigger Inputs:

  • Jumlah: 2

  • Voltage: 24–30 VDC

  • Switching Delay: 52–53 µs (digital filter)

Temperature Sensor Connection:

  • Jumlah: 2

  • Resistance: 500 Ω – 5 kΩ

Electrical Properties:

  • Discharge Capacitance: 0.2 µF

  • IE2 Efficiency: 3.3%–4% tergantung load

  • Standby Loss: 8.8 W

Operating Conditions:

  • Mounting: Vertical & horizontal face-up

  • Elevation: 0–500 m nominal, max 4000 m

  • Protection: IP20

  • Overvoltage Cat: III

  • Pollution Degree: 2

Ambient Conditions:

  • Operasional: 5–40°C (max 55°C)

  • Penyimpanan: -25 to 55°C

  • Transport: -25 to 70°C

  • Humidity: 5–95% (non-condensing)

Mechanical Properties:

  • Dimensi (W x H x D): 53 x 317 x 263 mm (wall mount)

  • Berat: ±2.8 kg

  • Modul Width: 1

Download

Hardware Upgrade Files

Grup file pembaruan hardware untuk modul ACOPOSmulti, dapat digunakan di Automation Studio.

Sertifikat

File sertifikat resmi untuk penggunaan modul ACOPOSmulti.
